Pre-Upgrade Step:

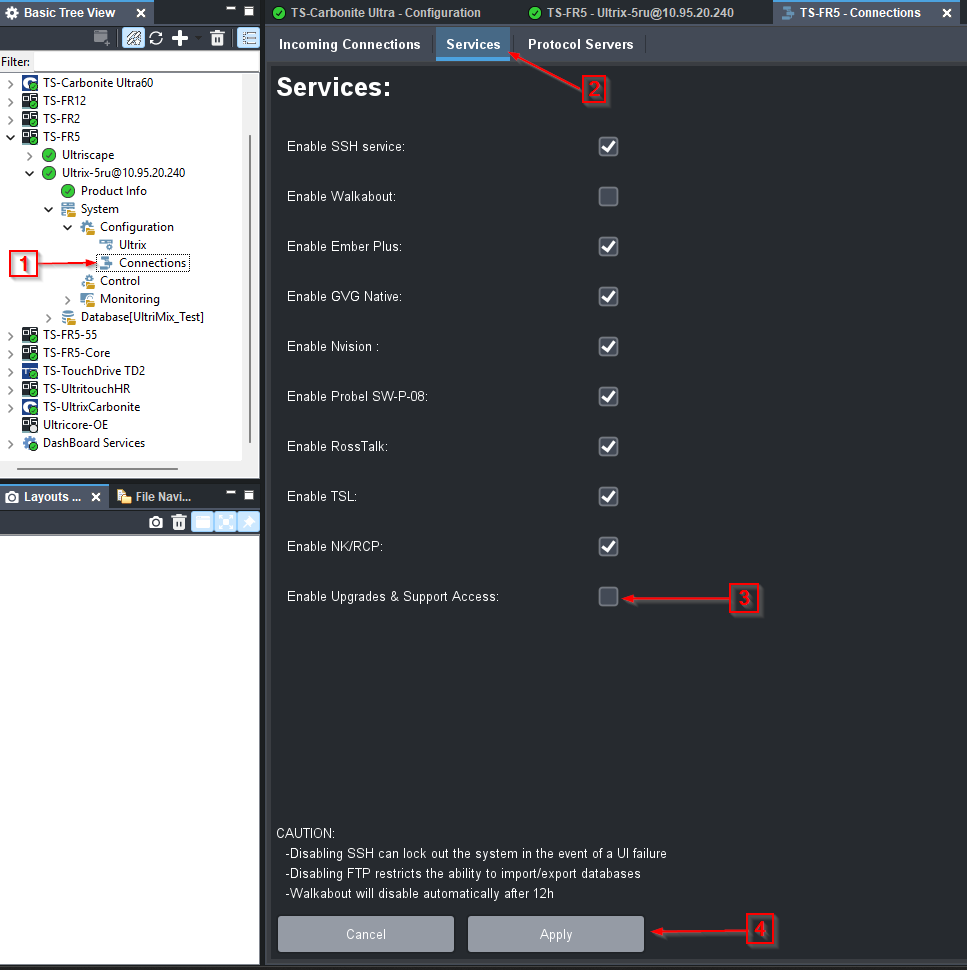

Make sure that "Enable Upgrades & Support Access" is enabled under the Connections tab.
It can be found under: Ultrix -> System -> Configuration -> Connections. From here, you'll want to navigate to the services tab to enable the selection and then select Apply.
Upgrade Steps:

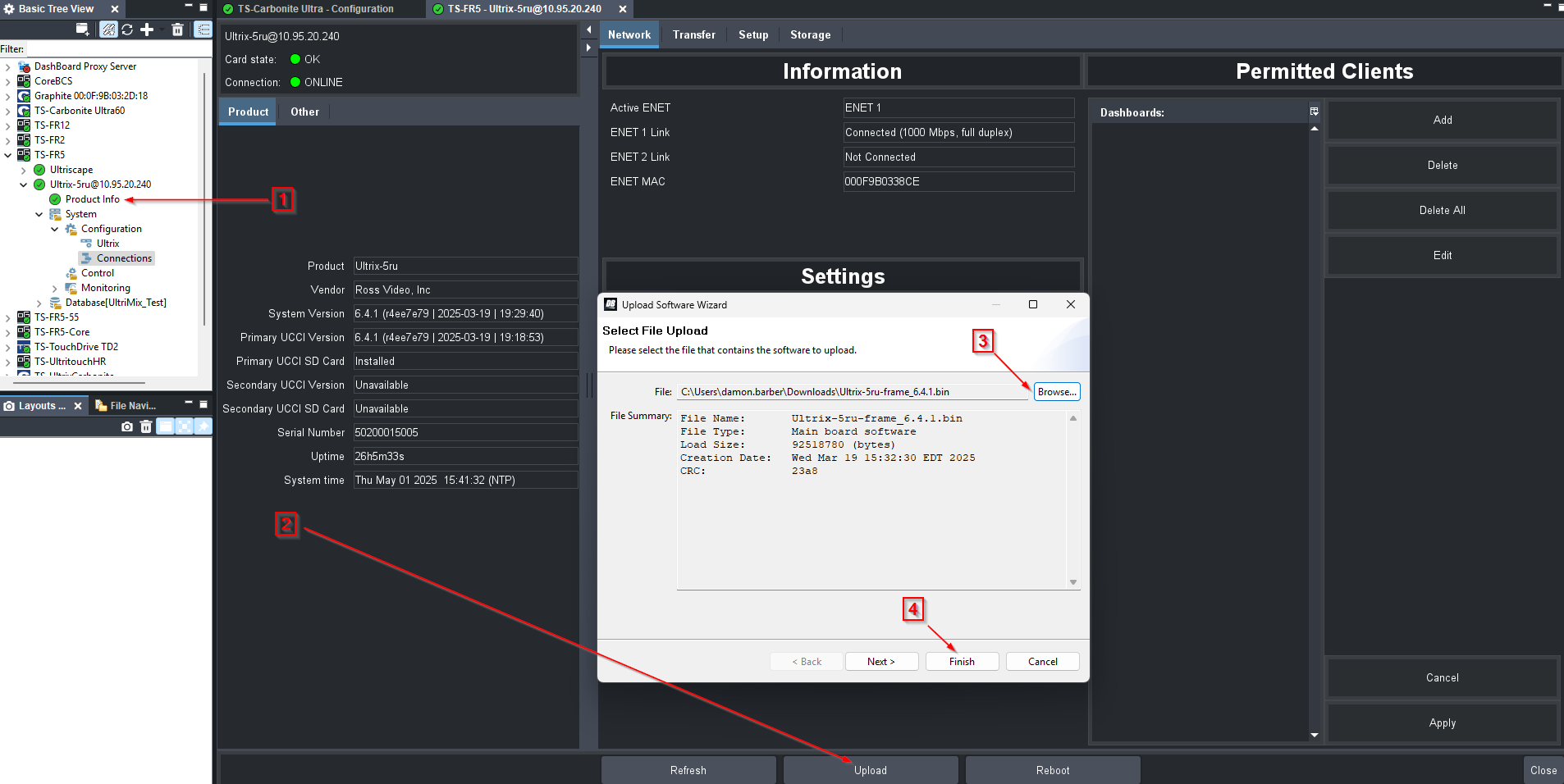

When ready to upgrade, navigate to Product Info > Upload > Browse (select .bin file) > Finish > Wait for upgrade to complete. Please do not reboot yet.
- If you have any HDX boards, upload the HDX file now.
- If you have any IP boards, upload the IP file now.
- If you have any MODX boards, upload the MODX file now
Once all files have been successfully applied, reboot the system from the upgrade popup or at the bottom of the system status window.
Post Upgrade Steps:

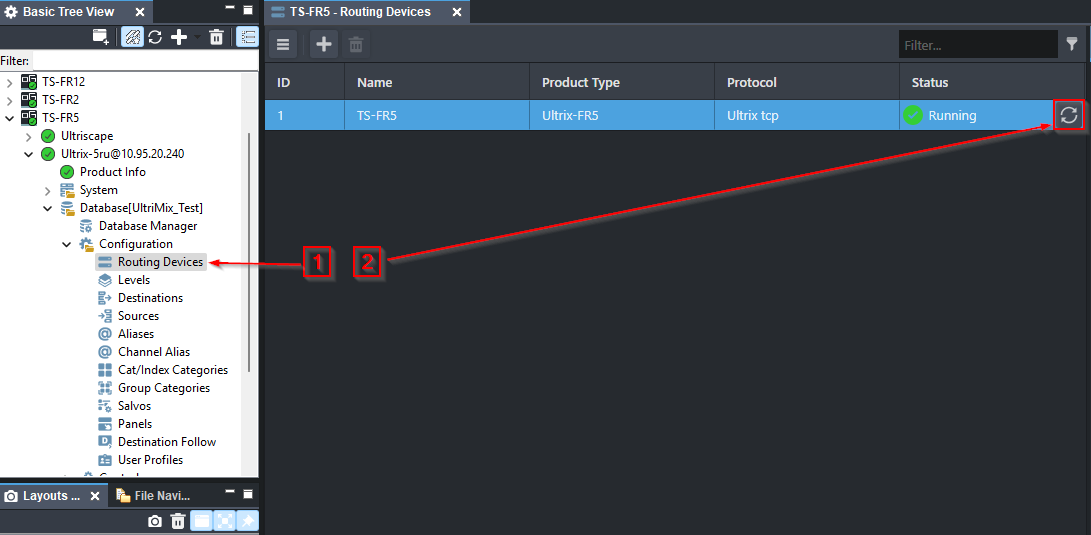

After the upgrade, you'll want to refresh the IO. This can be found under:
Ultrix -> Database -> Configuration -> Routing Devices
After the upgrade, perform standard testing to ensure everything looks good and the Ultrix is routing correctly.
