Save System Salvo

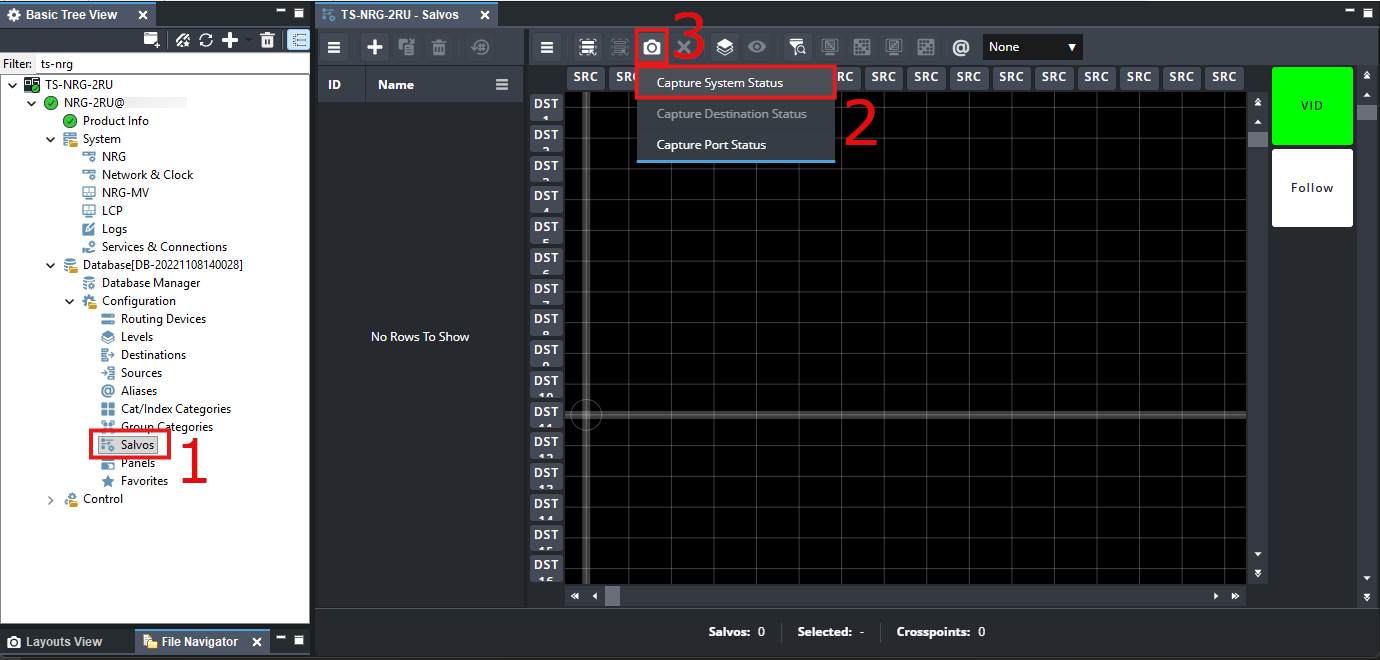

1 - Navigate to NRG > Database > Configuration > Salvos.
2 - Click the 'Camera' icon.

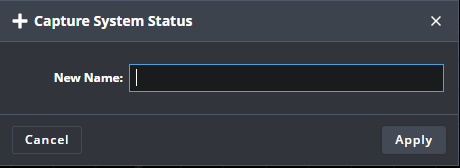

3 - Click Capture System Status.
4 - Name the Salvo, and click Apply.
Backup Database

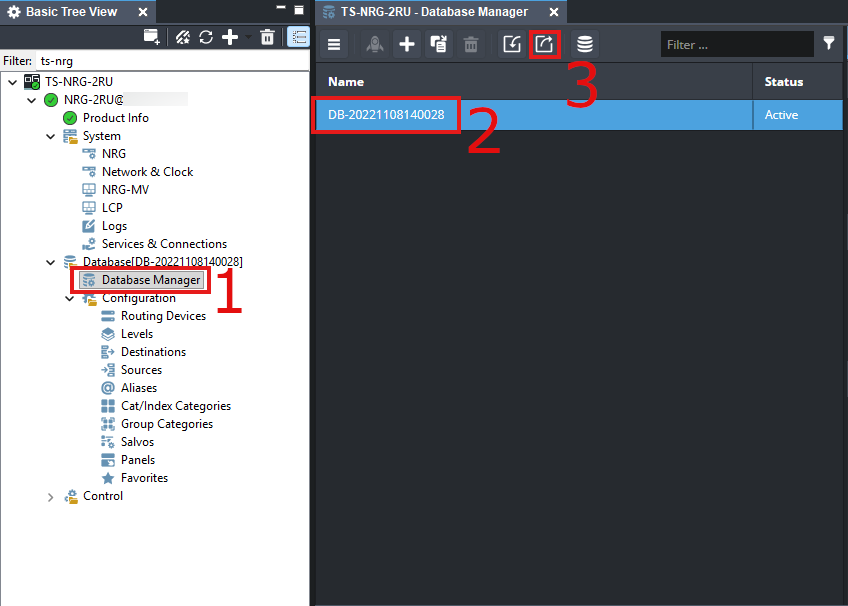

1 - Navigate to NRG > Database > Database Manager.
2 - Click the Database.
3 - Click 'Export' button.

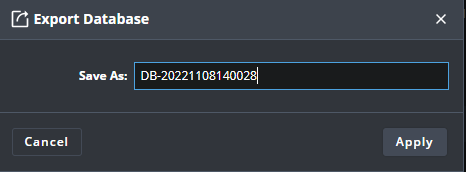

Rename the database if desired, click Apply, navigate to local .
Rename the Database if desired.
Navigate to a save location, and press Save.*
If any more databases need to be backed up, repeat these steps.

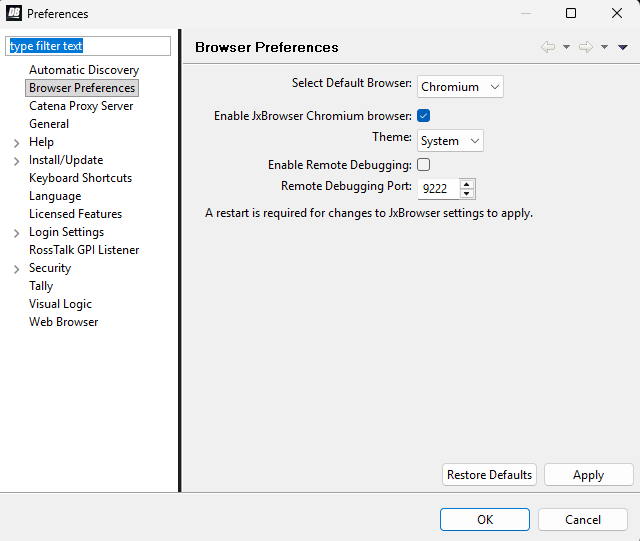

*If this Save As pop-up window doesn't come up, ensure that JxBrowser is enabled in Dashboard- Window > Preferences > Browser Preferences.
Enable Upgrades & Support Access

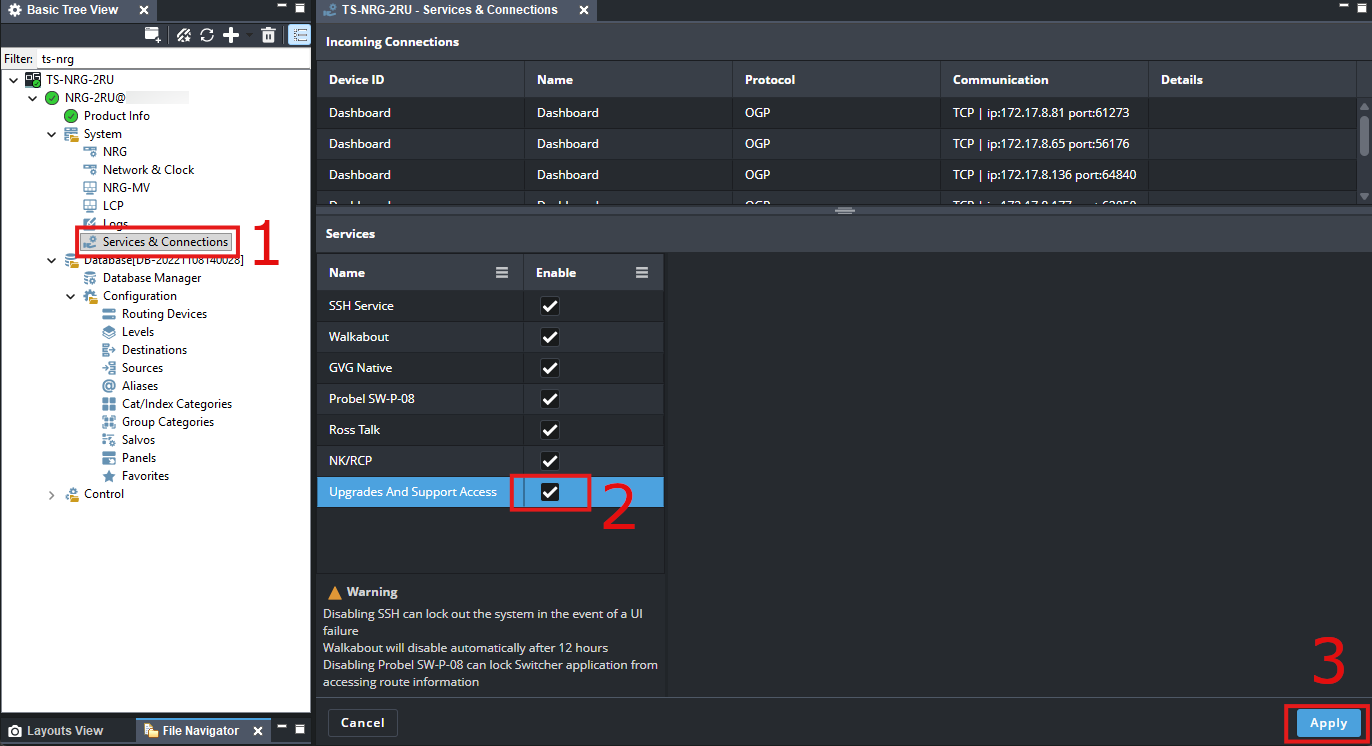

1 - Navigate to NRG > System > Services & Connections.
2 - Find "Upgrades and Support Access" under the Services pane, and enable the Checkbox.
3 - Click Apply.
Upgrade NRG

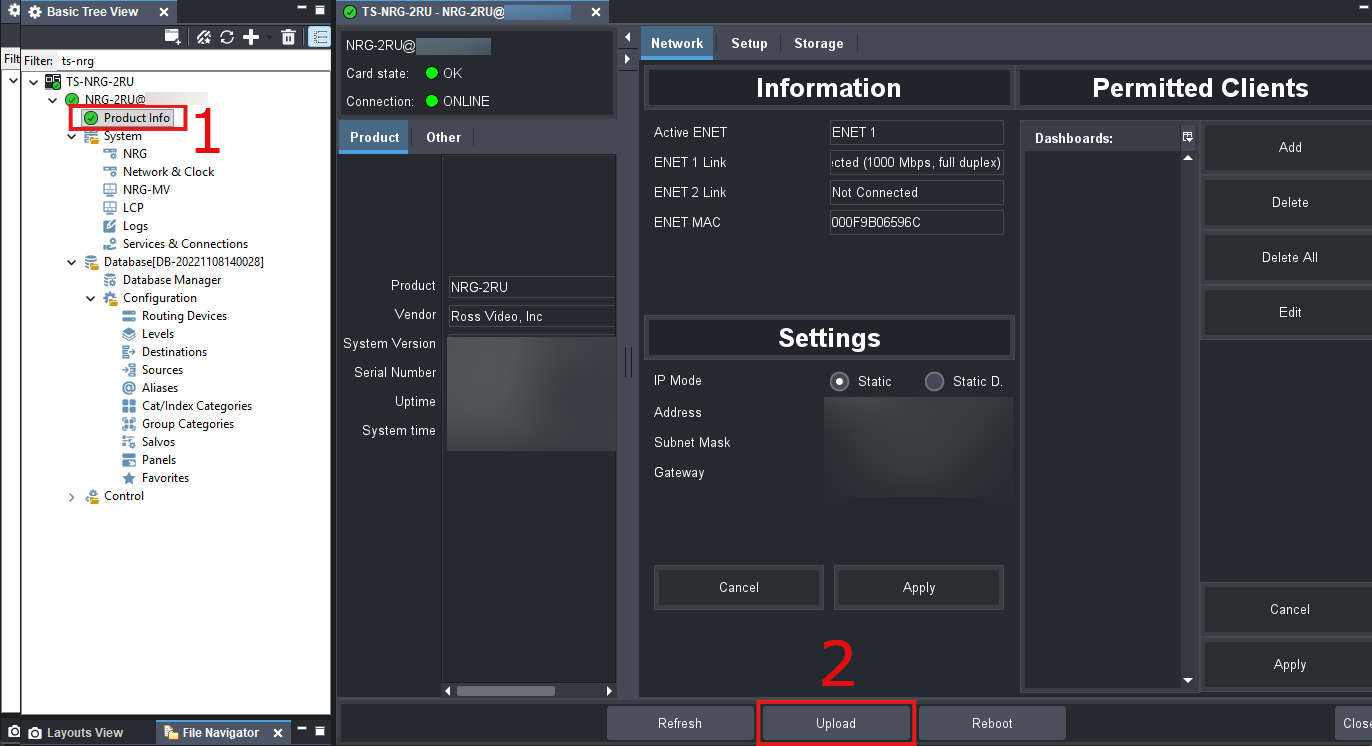

1 - Navigate to NRG > Product Info.
2 - Click Upload.

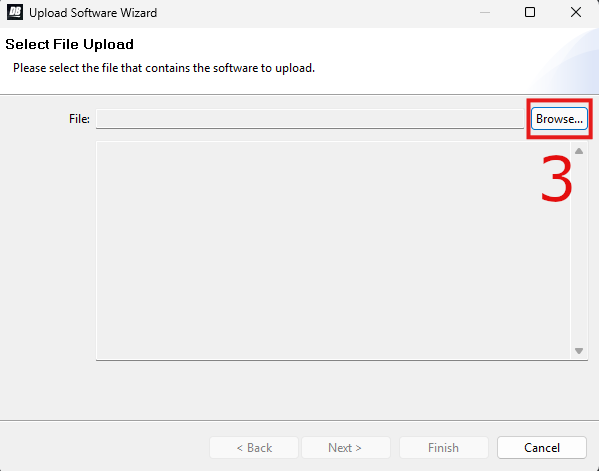

3 - Click "Browse..." and navigate to the firmware upgrade file.

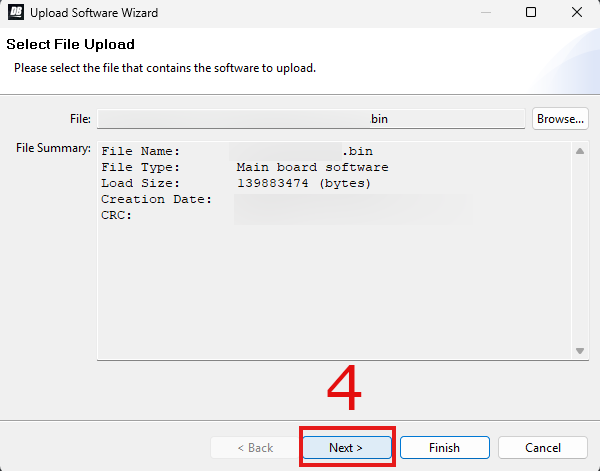

4 - Click "Next >".

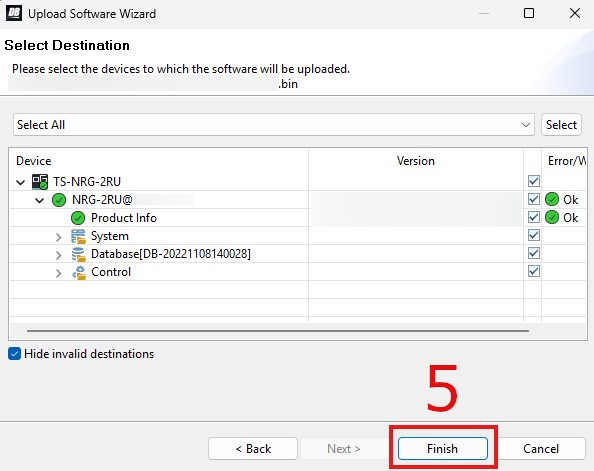

5 - Verifying that the desired Ultrix is selected, click "Finish".
Allow the upload and upgrade to progress. Once the upgrade is complete, click Reboot.
