If an UCCI is not reachable by internal ping - either at 192.168.12.120 for Primary or 192.168.12.130 for Secondary, an SD recovery is the next step to restore functionality.
Note that an UCCI is hotswappable while the frame is on- know that without the UCCI, the Ultrix won't be externally available via network.
This will require a microSD USB card reader and a PC.
Phase 1 - SD Card preparation
- Remove the microSD card from the UCCI.
- Insert the microSD card into the USB reader, and into the PC.
- When the microSD card appears in Windows Explorer, right click it, and select Format.
- Format the drive as FAT32.
- A warning will appear regarding all data will be erased on the SD card. Press OK.
- Format should report as complete. Press OK.
- Close the Format window.
-
Download UCCI_5.5.2-recovery.zip from Brick/FTP at this path:
/Ross Video/Tech Support/Software Releases/Ultrix | Ultricore/FR5/Previous Releases/5.5.2
- Extract/unzip this folder, and place it's contents onto the SD card.
- Eject the microSD card when the file transfer completes.
- Insert the microSD card into the UCCI.
Phase 2 - Recovering the UCCI

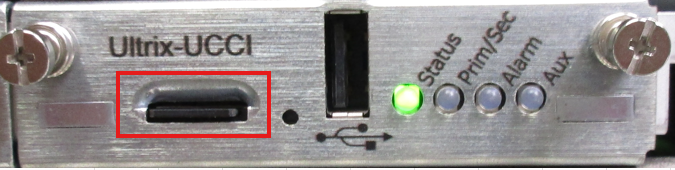

- Insert the microSD card into the UCCI card slot.
- Remove the UCCI from the FR5. There are two phillips head screws to loosen before pulling the card out.
-

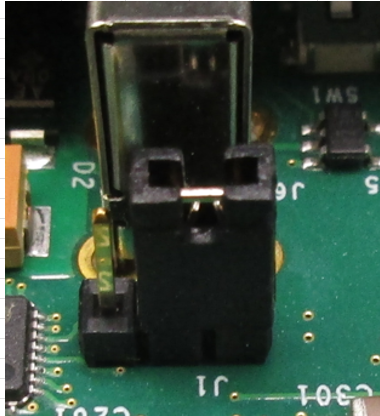

Place the J1 jumper to position 2&3 to boot from uSD.
- Insert the UCCI back into the FR5.
- Once the UCCI is booted, it may show as unavailable.
- SSH into the FR5.
- Run command: /ross/bin/expose-ucci.sh
- In a web browser, navigate to [ULTRIXIP]:50120 for Primary UCCI, or [ULTRIXIP]:50130 for Secondary UCCI.
- Select software upgrade, followed by Browse...
- Select the UCCI firmware file matching the FR5's firmware. This is available for download on the Brick FTP UCCI_x.x.x.bin.
- Select Upload Firmware.
-

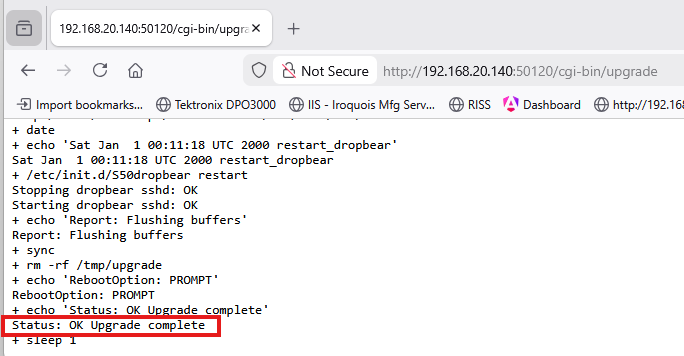

The update should progress for a few minutes, before ending on OK Upgrade complete
- Remove the UCCI from the FR5.
-

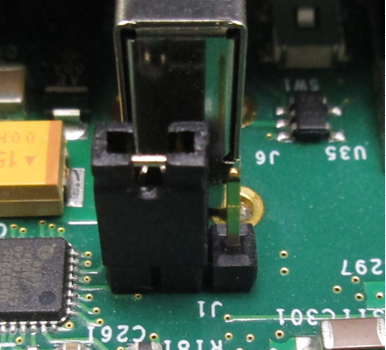

Place the J1 jumper back to position 1&2 to boot normally.
- Insert the UCCI back into the FR5.
- Verify that the UCCI is now available and on the expected firmware.
