If the Battery alarm displays a red indicator in the Alarms table of the Frame Configuration
interface, you will need to replace the battery installed inside the Cooling Fan Module of the chassis.

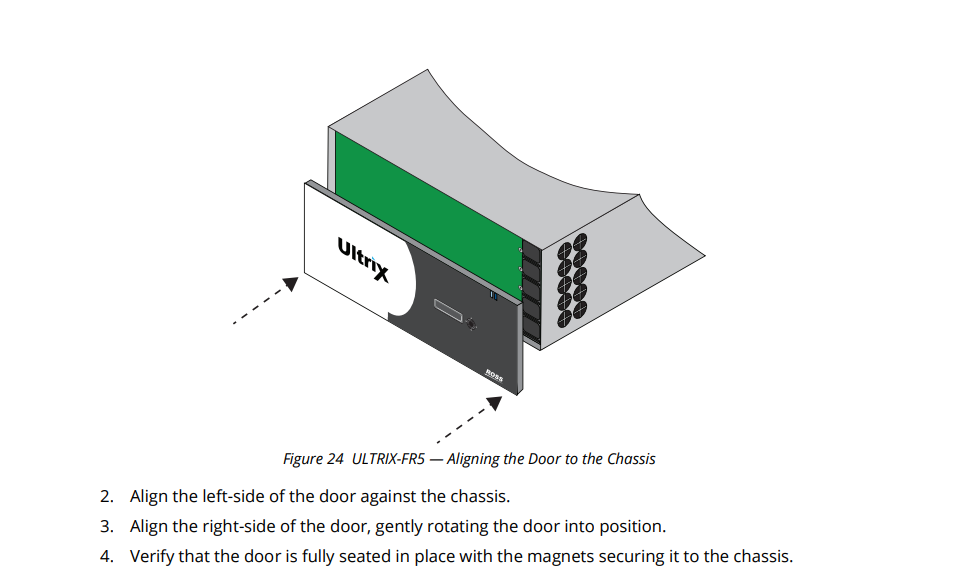

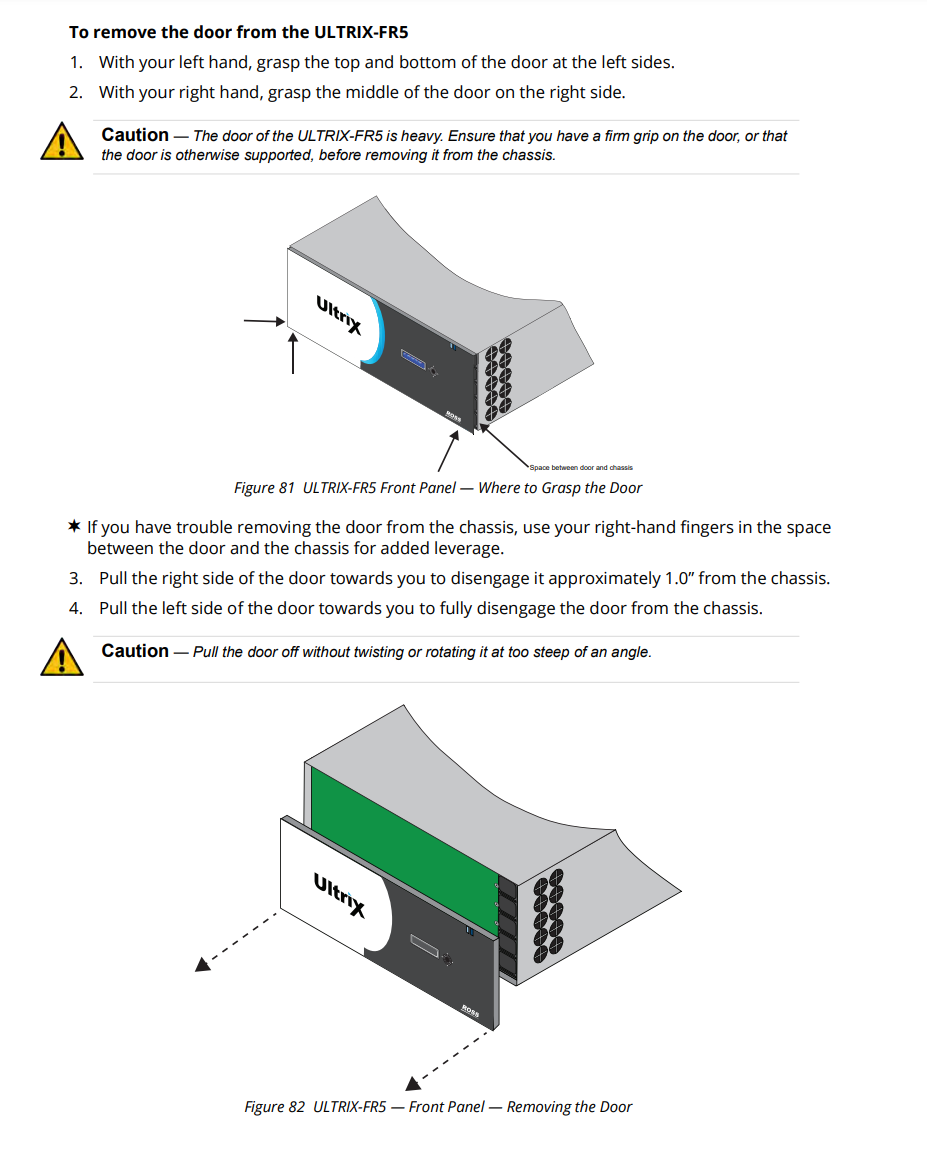

This module is accessed via the front of the router chassis and requires that you remove the door
first. The door is secured to the front of the router chassis with a rare earth magnet on each side.
Important notes:
-- It is recommended to capture a Salvo of your routes before proceeding, as they can be lost with the battery replacement.
To Capture a System Status salvo:
1. Expand the Ultrix node in the Basic Tree View and navigate to Database > Salvos.
2. Select Edit...
3. Select Add (then name your Salvo and apply)
4. Select Advance...
5. Capture System Status
6. Apply.
With a Salvo backed up, the Ultrix is now able to be powered down for the swap.
